Application

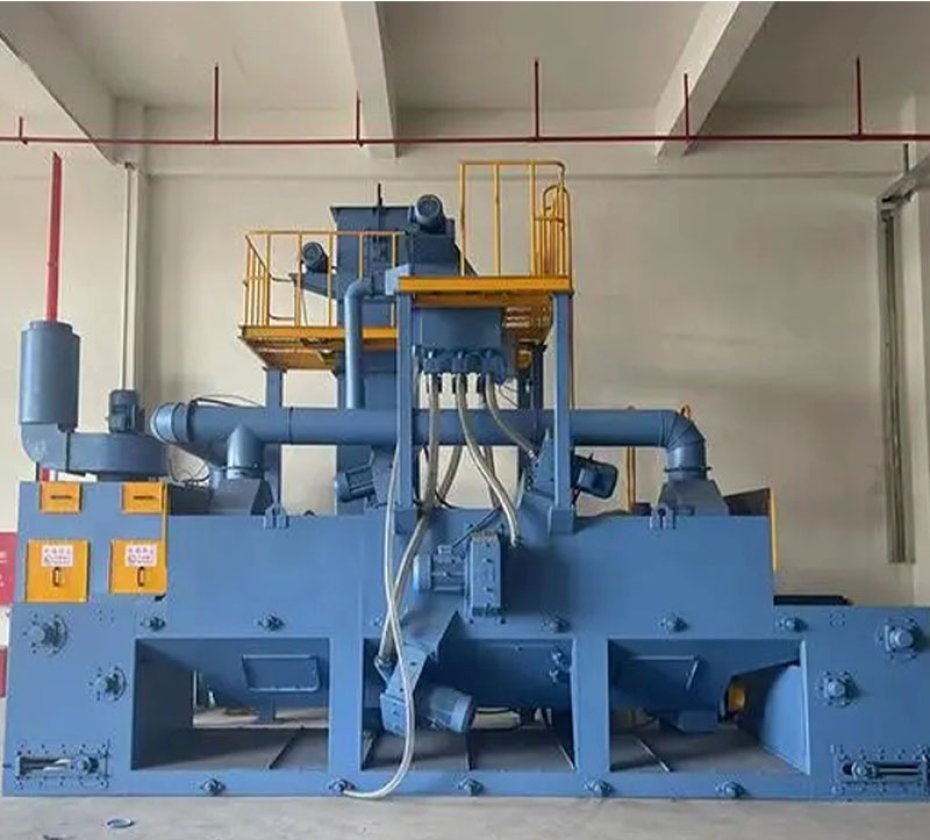

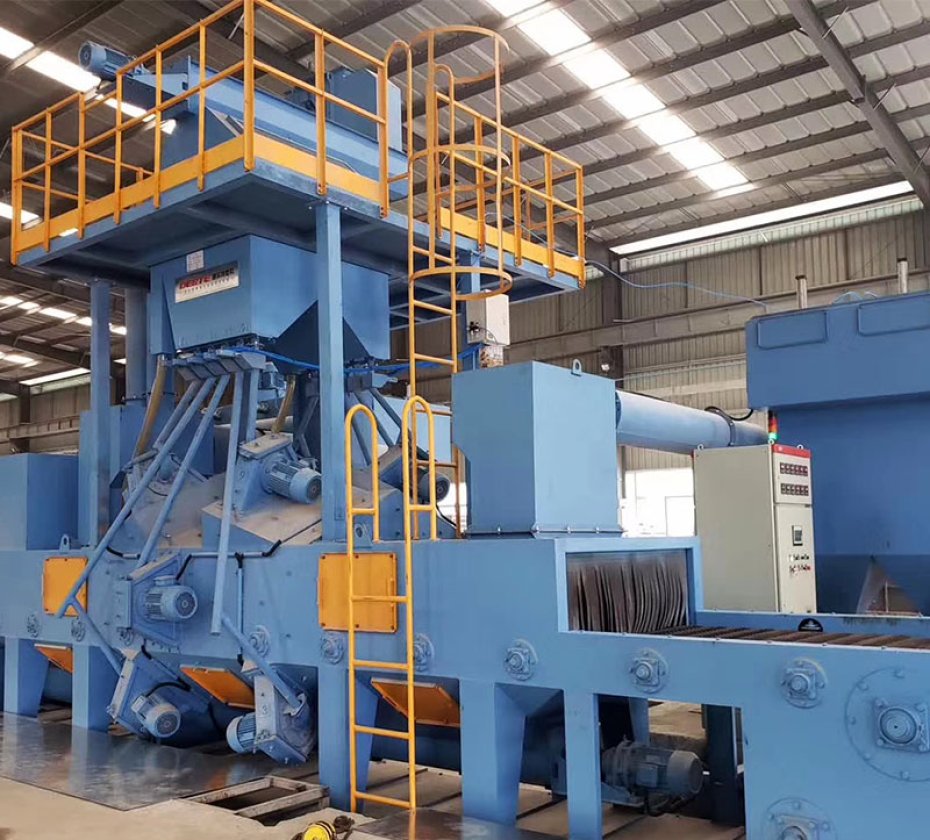

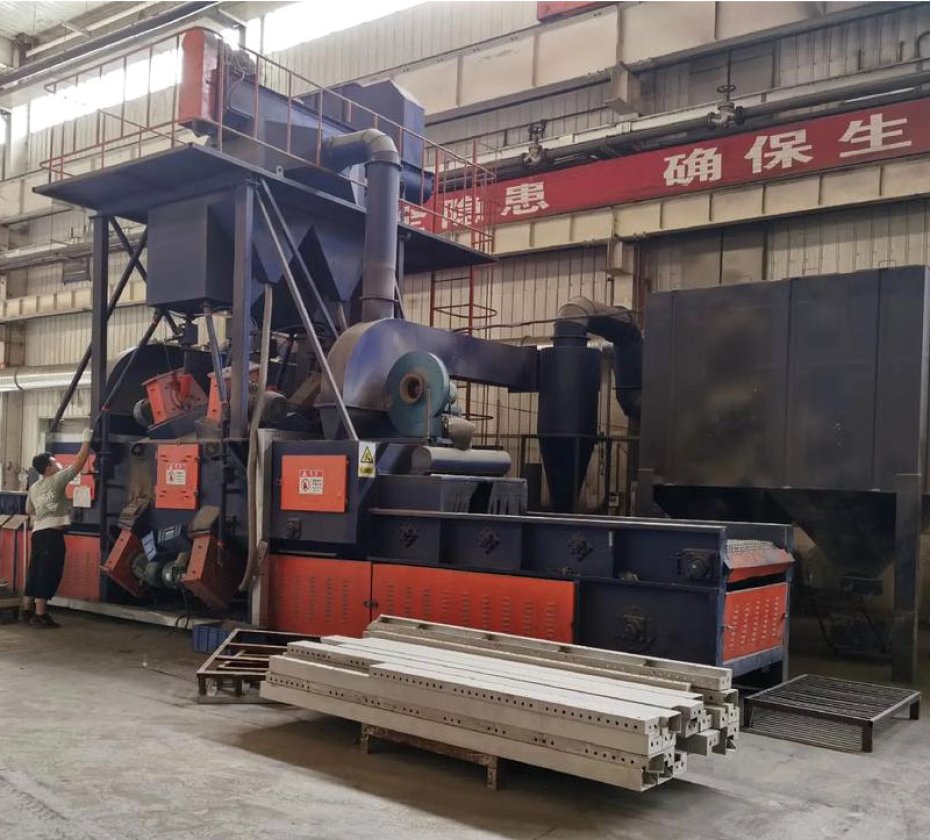

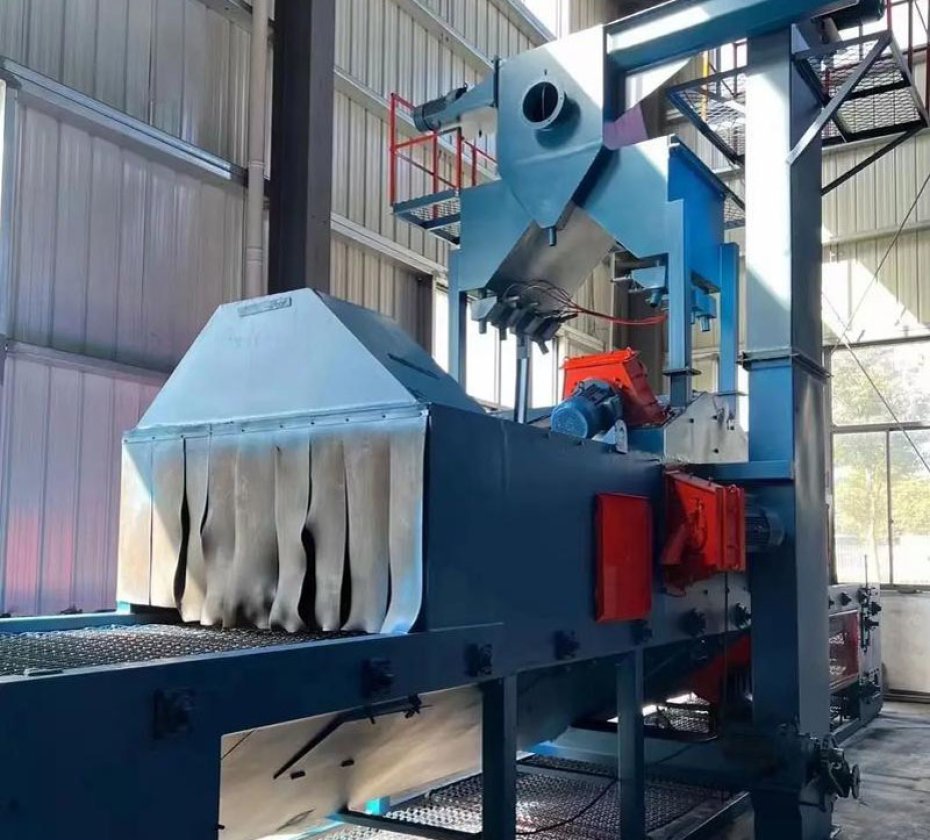

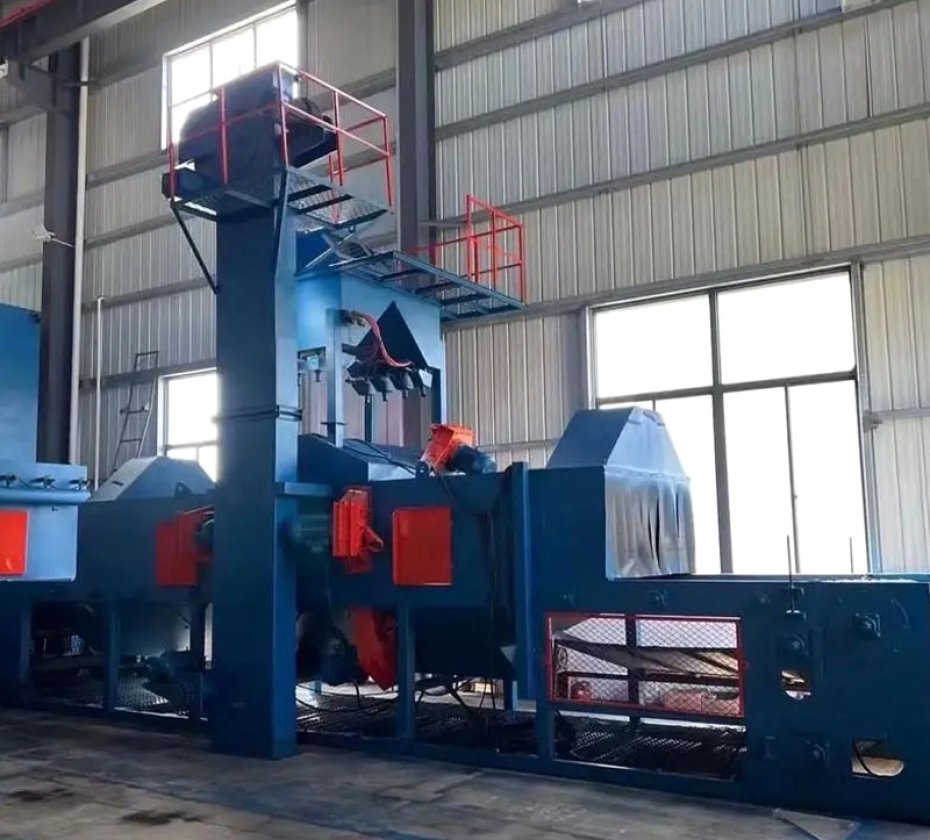

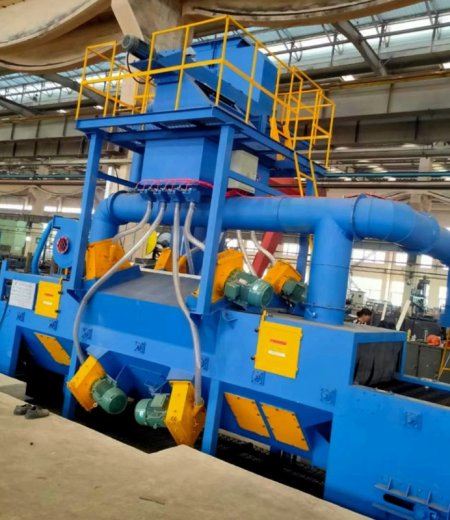

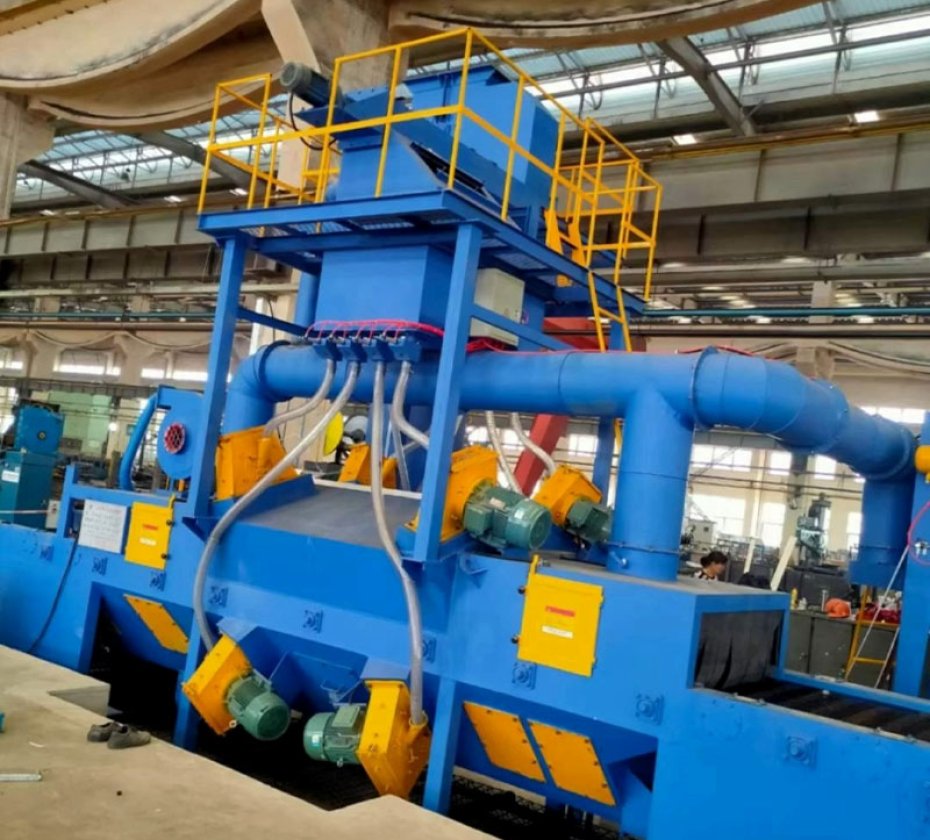

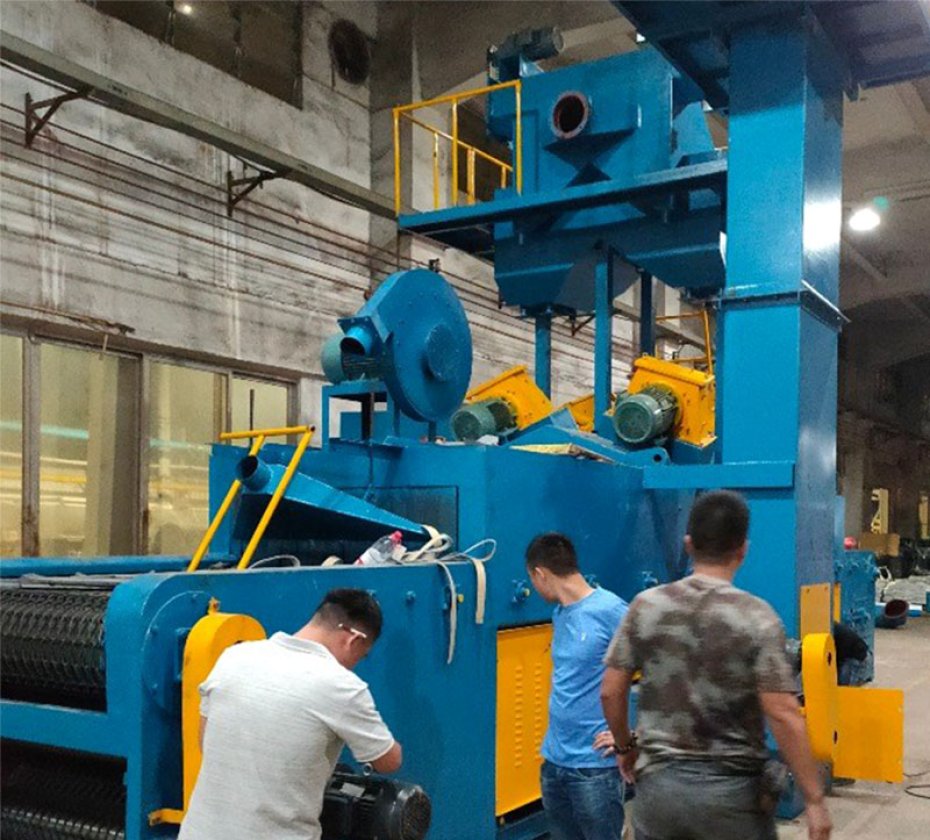

Mesh Belt Shot Blast Machine provide cost effective performance for deburring, cleaning or etching. These systems are extremely versatile for efficient blast coverage and built to accommodate medium to large castings, automotive wheels, ferrous and non-ferrous castings, fabrications and more.
High impact toughness can make full use of the reflection kinetic energy of shot to continue to blast cleaning the surface of work piece, so greatly enhance the cleaning efficiency and quality.
High chrome wear resistant perforated saddle plate are deployed at the bottom of the blasting chamber which ensure the used blasting media will appropriately get into the abrasive recycle system and prevent any damages to the bottom screw conveyor.
1. Product description

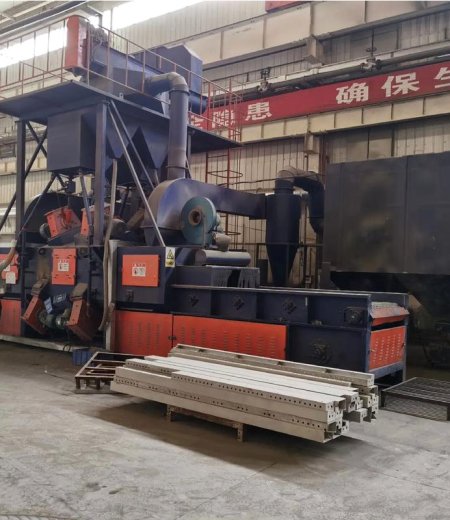

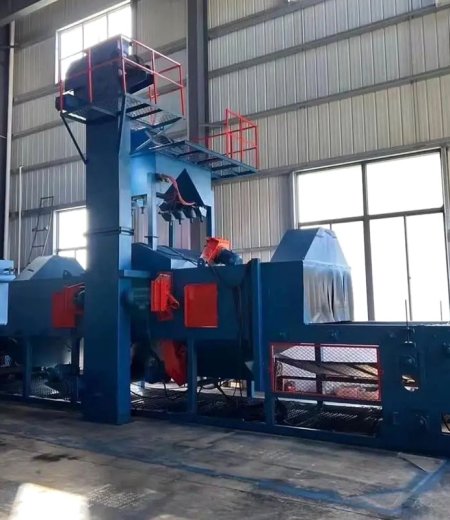

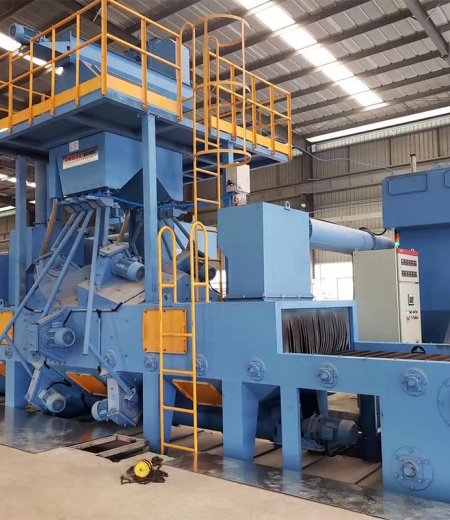

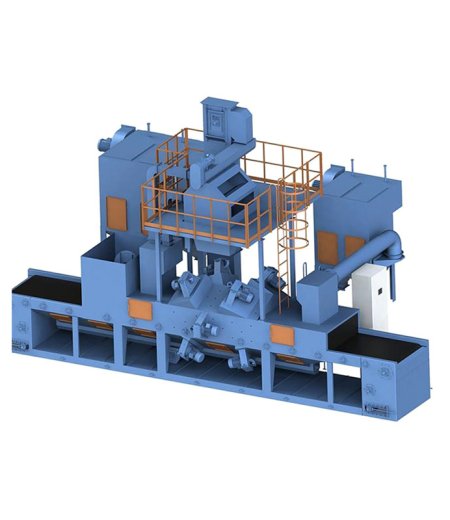

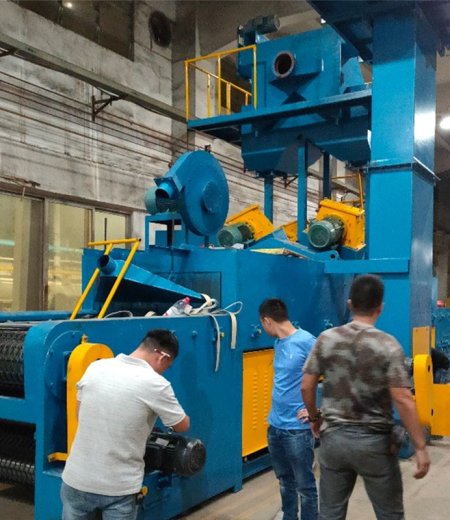

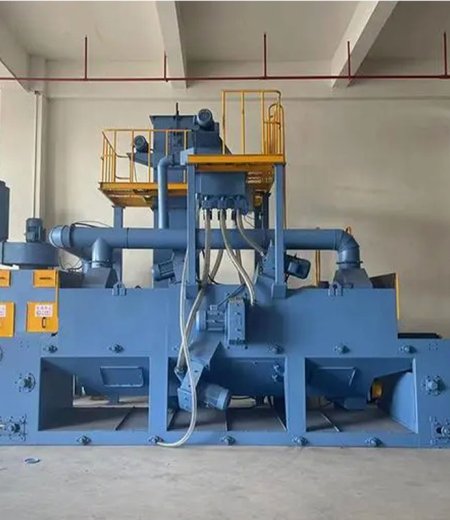

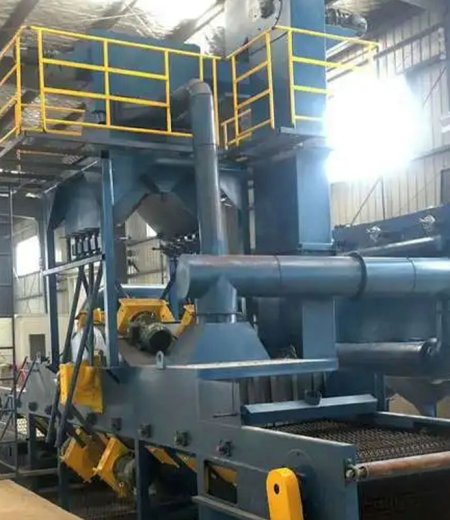

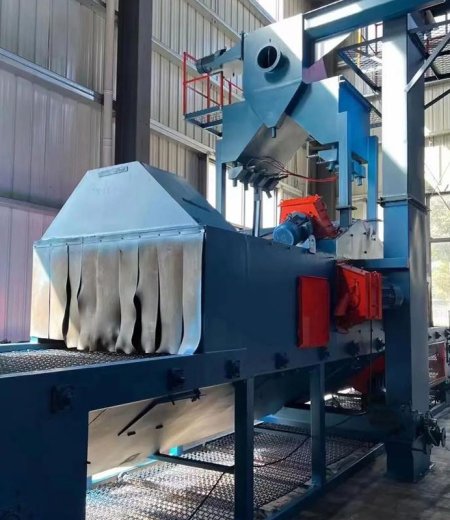

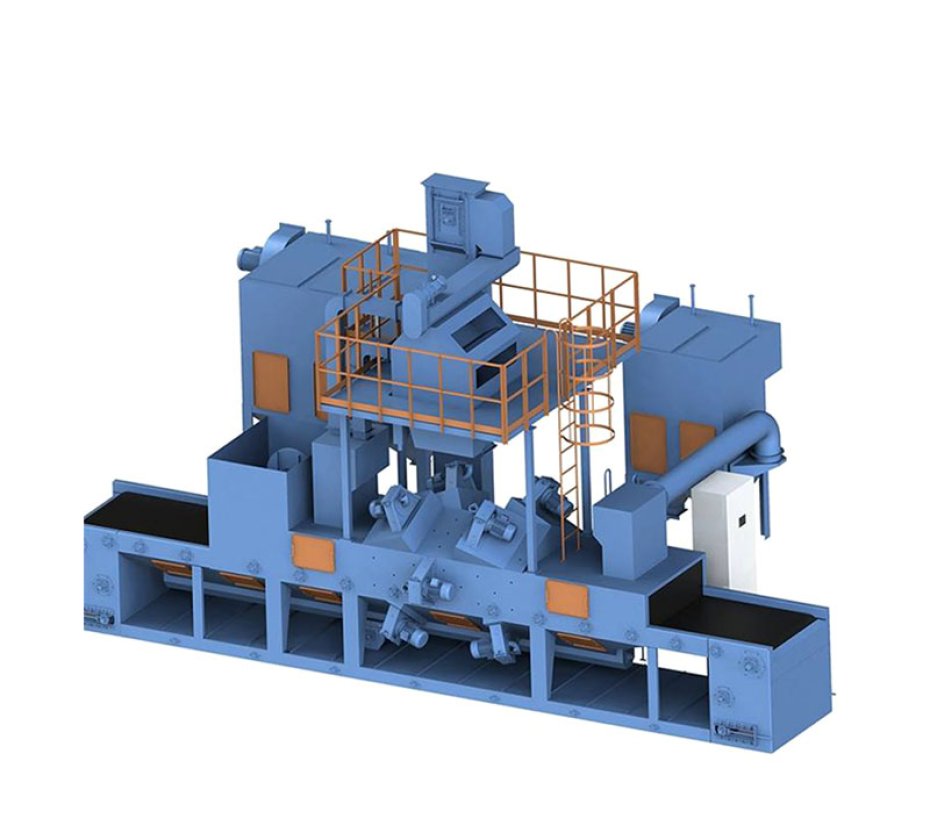

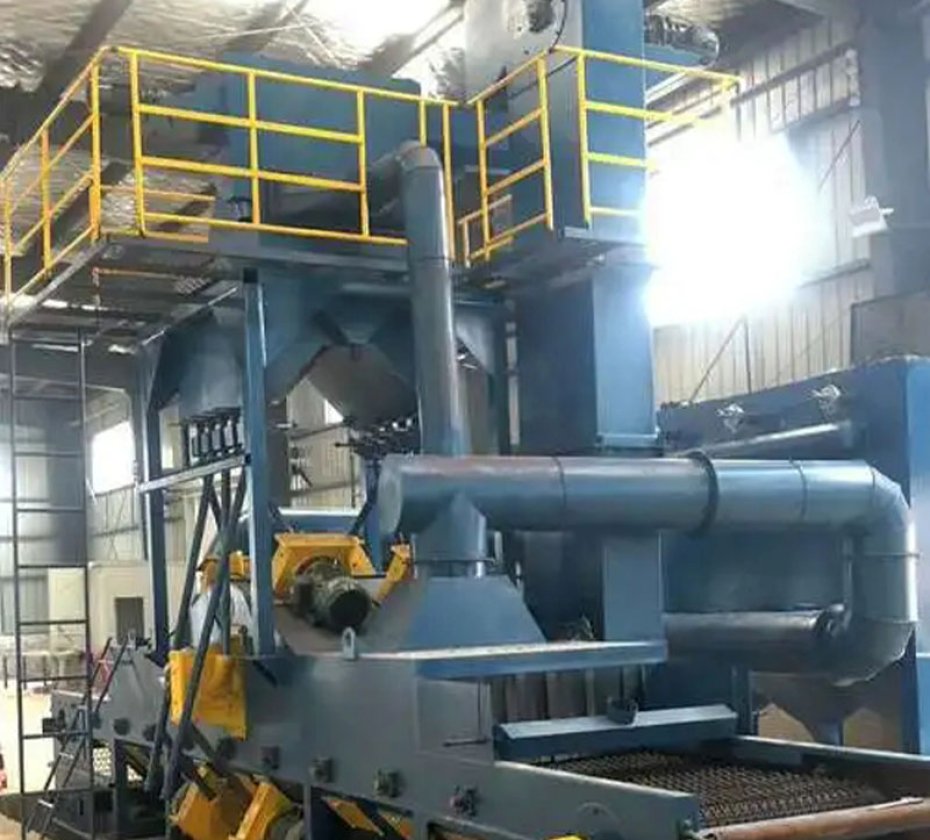

This machine is a pass through type wire mesh belt automatic cleaning equipment. It is suitable for sheet metal parts, die castings, flat workpiece , small and medium complex parts etc. It can clean the workpiece surface, increase the paint film adhesion, improve the surface quality. our company developed the high power direct coupled shot blast wheel from 7.5KW to 75KW which is the top technology of blast wheel in Asia. The configuration, quality and performance of this equipment have been a leader in this line.
2. Advantage
It is especially suitable for flat parts and parts vulnerable to impact
Smooth and safe transportation of various sizes of workpiece in continuous production
Provide efficient shot blasting operation for very complex parts
3. Technical data
Model | KWD 800 | KWD 1000 | KWD 1800 | KWD 1500 |
Max workpiece width (mm) | 800 | 1000 | 1800 | 1500 |
Max workpiece height (mm) | 400 | 500 | 500 | 500 |
No. Of shot blaster | 4 | 4 | 10 | 10 |
Power of single shot blaster (kW) | 7.5 (11) | 7.5 (11) | 11 (15) | 7.5 (11) |
4. Key Benefits
1. Uniform blast cleaning effect, perfectly clean castings.
2. Deformation-free cleaning.
3. Optimum exploitation of energy.
4. Adjustable blasting intensity to suit different types of castings.
