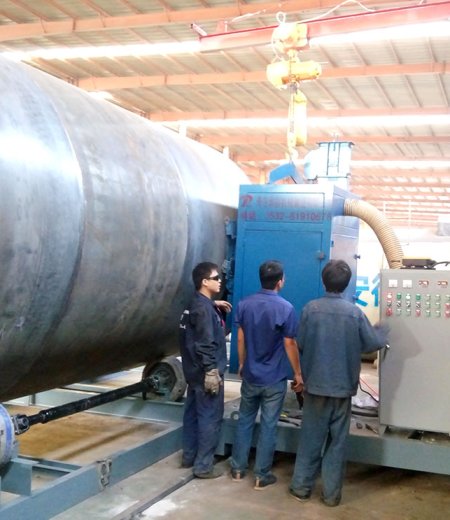

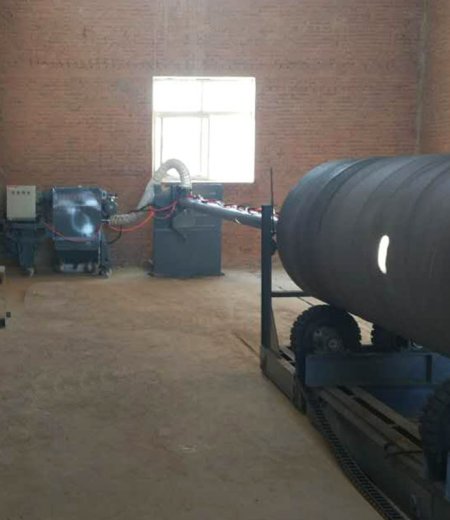

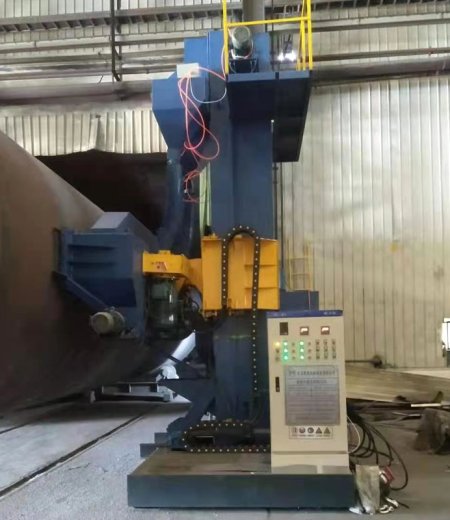

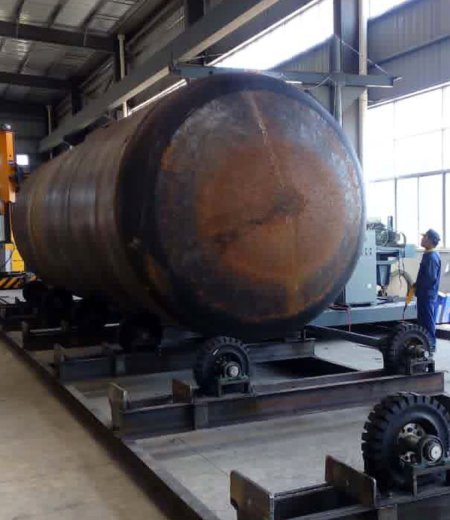

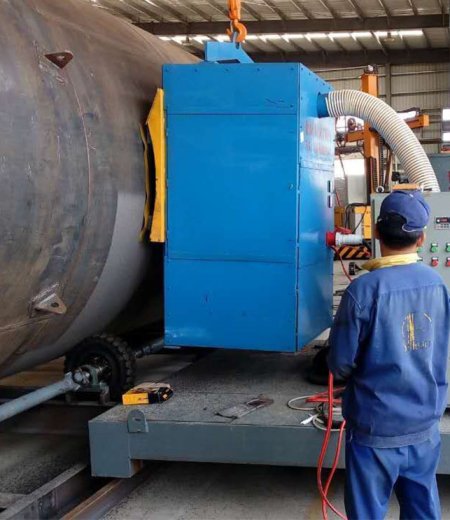

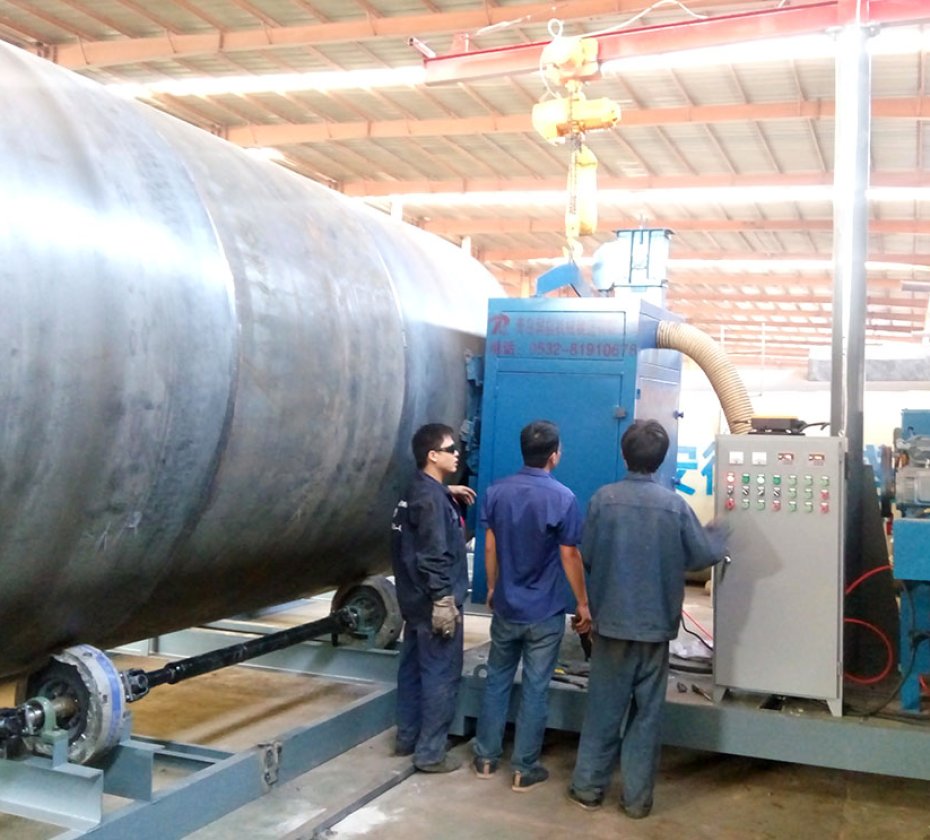

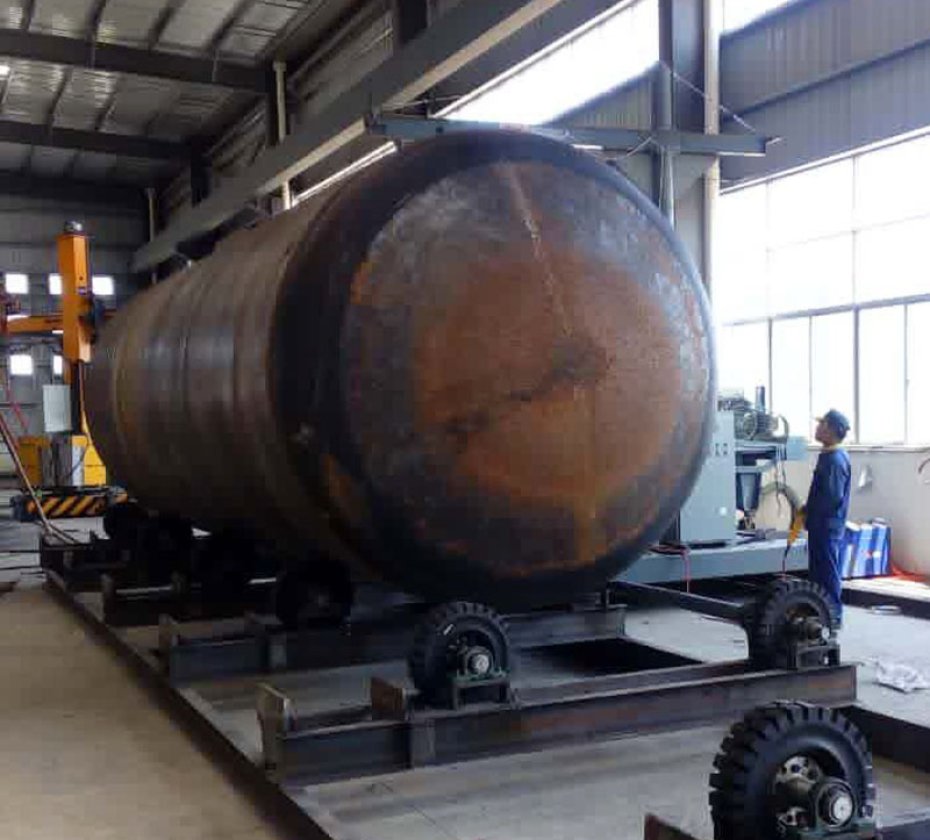

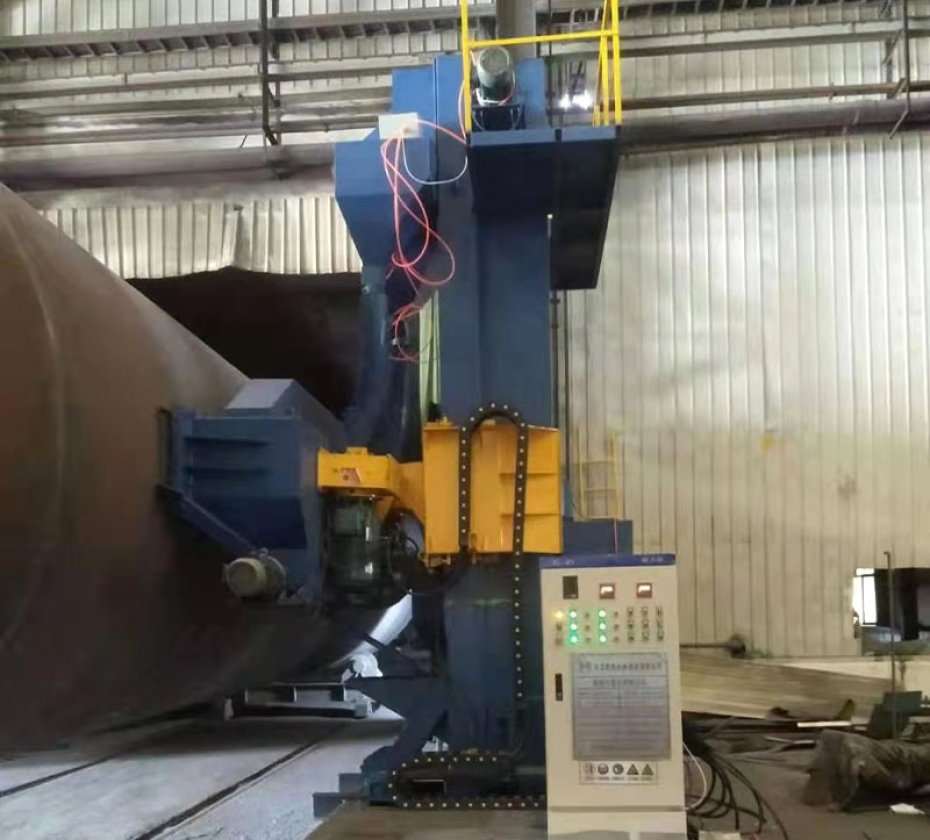

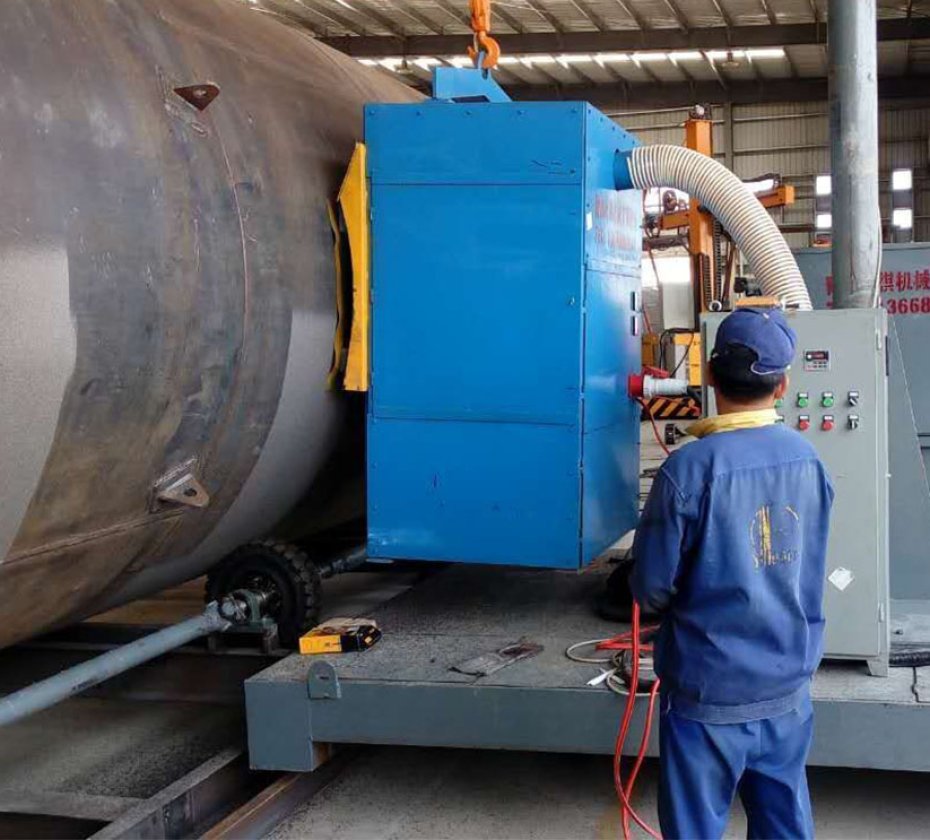

Tower outer wall shot blasting machineis suitable for cleaning the outer wall of tower to remove the sand and rust on the surface of the workpiece. with the powerful cleaning function, make the surface of the workpiece show metal color, eliminate the internal stress of the workpiece, achieve the purpose of improving the surface and internal quality of the workpiece, and ultimately improve the corrosion resistance of mechanical products and metal profiles. Secondly, the tower shot blasting machine can improve the fatigue resistance of steel and extend its service life. Optimize the process state of the steel surface to achieve the purpose of complete cleaning. It is suitable for the surface cleaning of the outer wall of various diameter steel pipes, widely used in petroleum, chemical, steel, central heating, drainage and other industries.

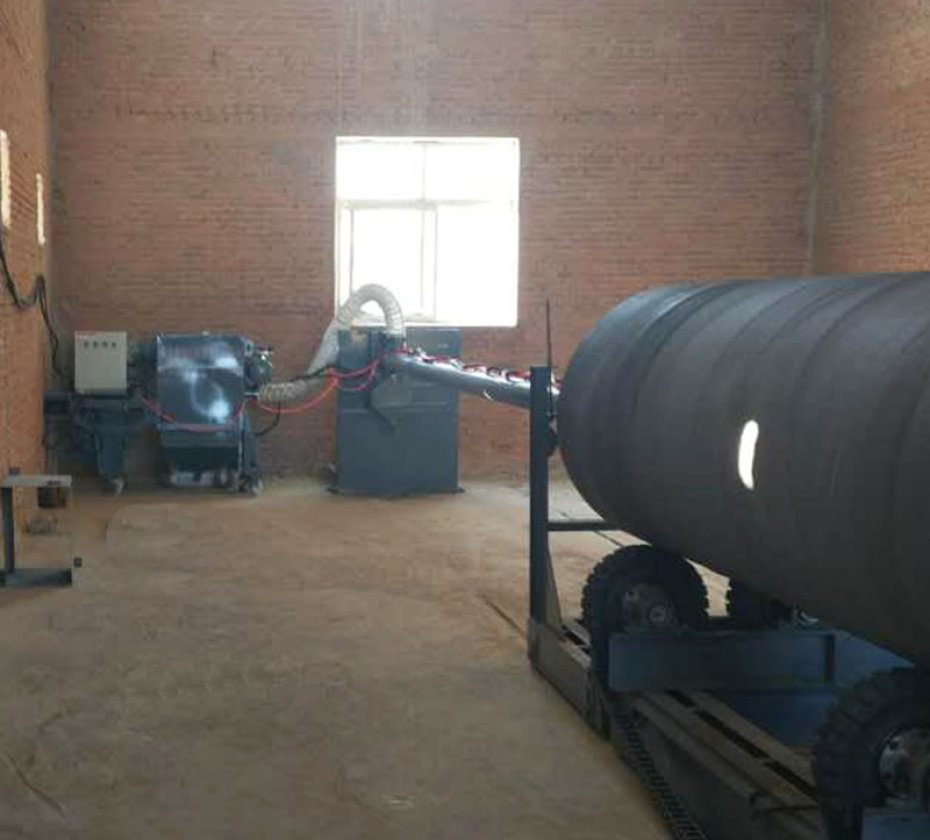

Tower inner and outer wall shot blasting machine for surface treatment , wiping up the oxide coating , welding slag, appearing the metallic sheen , increasing the area of the surface , which is in favor of UV. It applies in the line of petroleum& chemical , steel , city centralized heating , centralized drainage etc.TowerShot Blasting Machine/TowerOuter Wall Shot Blast Machines is a combination of clean-steel outer wall of cleaning machine, by blasting to clean the outer surface of the steel pipe, shot by throwing inside to clean surface, so that the surface oxide are rid off. It is used before welding or painting on its outer surface treatment of the pipes.
Conveyor system
● Rollers in the blasting cabinet are protected by special alloy jacket with lifetime over 4,000 hours.
● Conveyor system is driven by motors with inverter. Rollers can be controlled manually and automatically.
Blasting Chamber
Composition: Main blasting chamber, 2 auxiliary blasting chambers.
Auxiliary Blasting Chamber:Four layers rubber curtains
Main Blasting Chamber: blasting wheels are mounted on chamber in different angles
Divided & Modular Chambers: Designed accordingly
In the blasting chamber, the wall is protected by SPMn13 material liner and 65Mn protective liner, easy tear open outfit replacement.
Abrasive Recycling System
Longitude Screw: collect abrasive at the bottom.
Horizontal Screw: Delivery abrasive from longitude screw to bucket elevator.
Bucket Elevator:Lift abrasive to separator.
Separator:Separate & get qualified abrasive
Main features of tunnel shot blasting machine
Efficient cleaning process: The roller system continuous move workpiece and the high-speed rotation of the blasting wheel ensure fast and thorough cleaning, reducing the need for manual surface preparation.
Increased productivity: Roller shot blasting machines are capable of handling large sizes workpieces, thereby increasing productivity and efficiency.
Surface Enhancement: In addition to cleaning, the shot blasting process creates a textured surface called a profile. This profile enhances adhesion of coatings, paints and other surface finishes, thereby increasing product quality and durability.
Dust Control: Roller shot blasting machines are equipped with integrated dust collection systems to capture and control dust generated during the cleaning process. This protects operator health and ensures a cleaner working environment.
Surface laitance(floating slurry) removed, to make preparation to the next step paving and painting of various materials.
The steel strip shot blasting cleaning machine is specifically designed for high-performance shot blasting, descaling, and surface cleaning of carbon steel strips, stainless steel strips, and low alloy strips.
Model: QGW10、QGW15、QGW20、QGW25、QGW30、QGW140、QGW200
