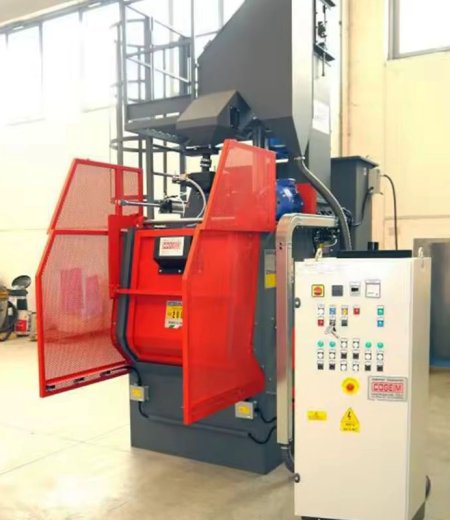

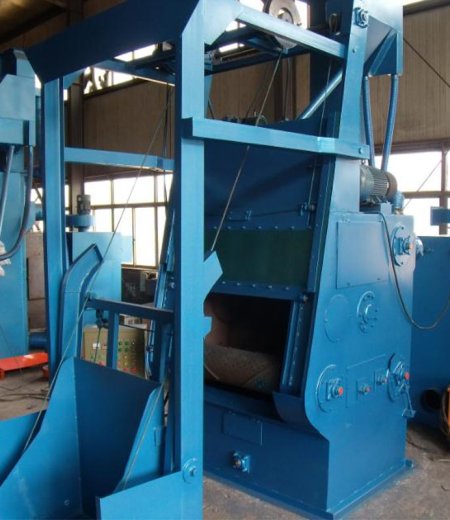

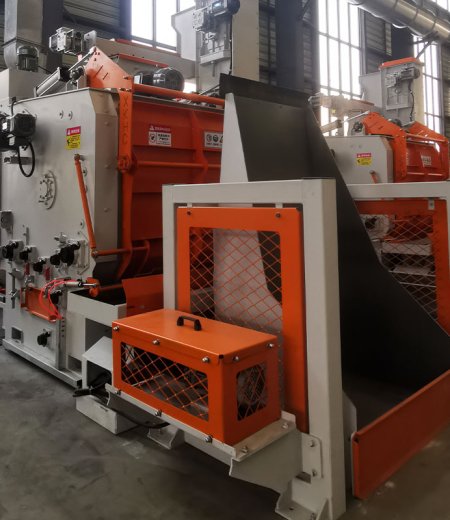

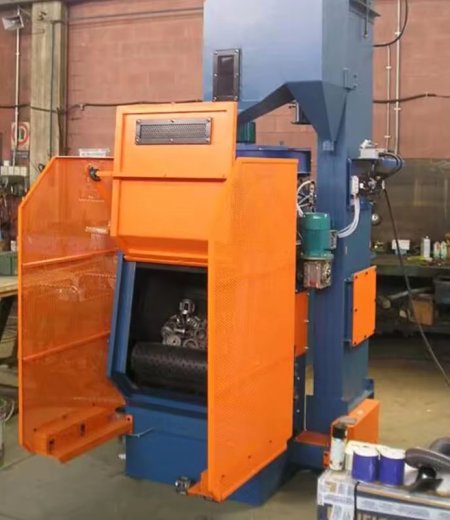

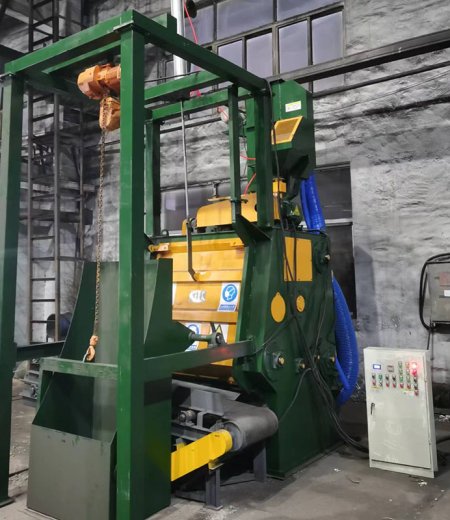

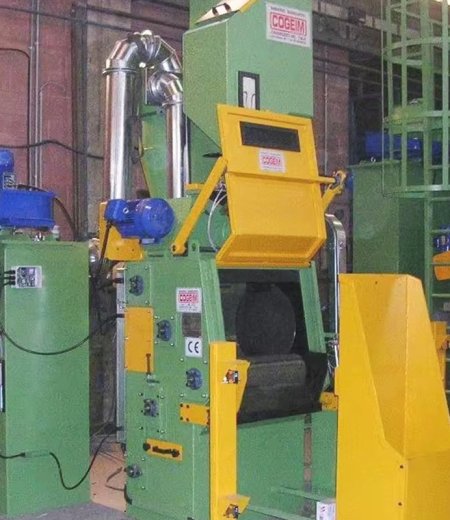

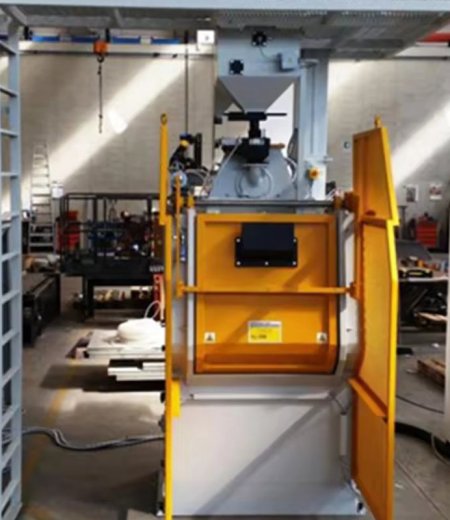

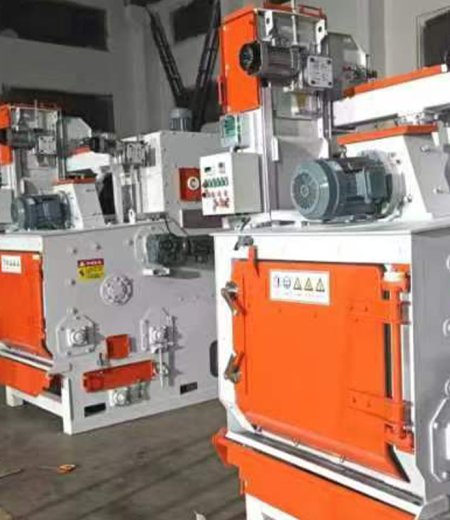

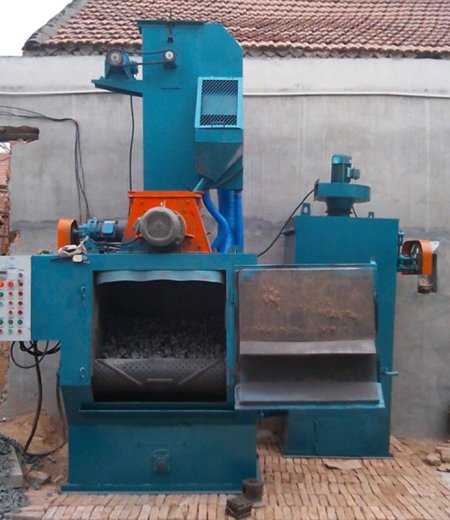

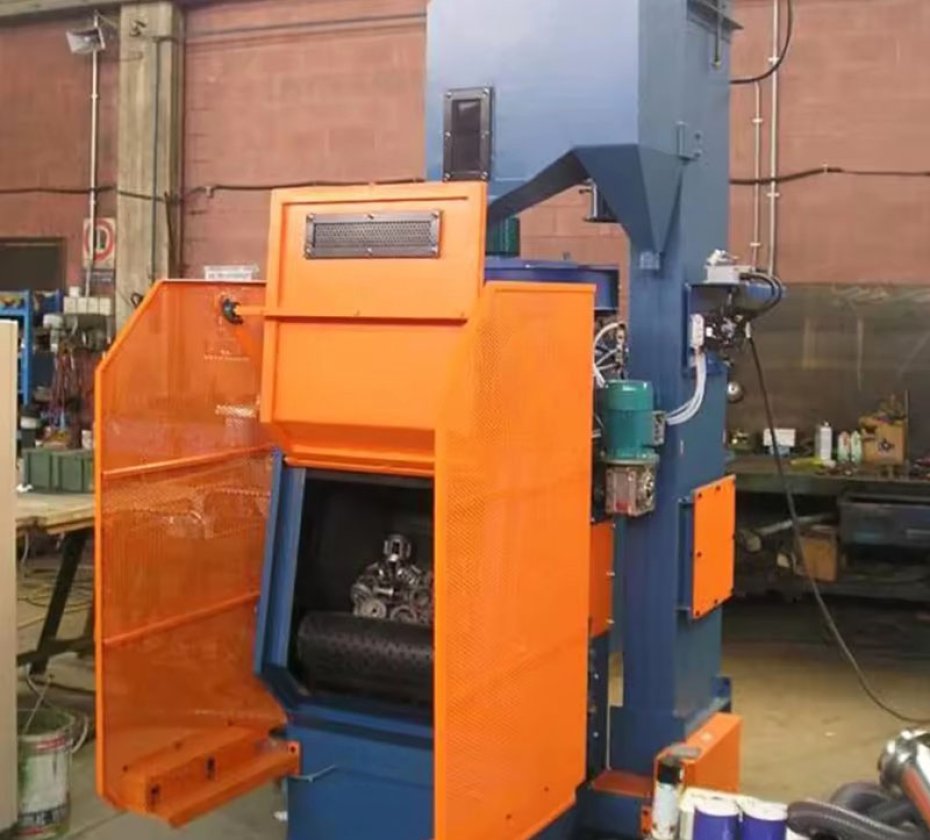

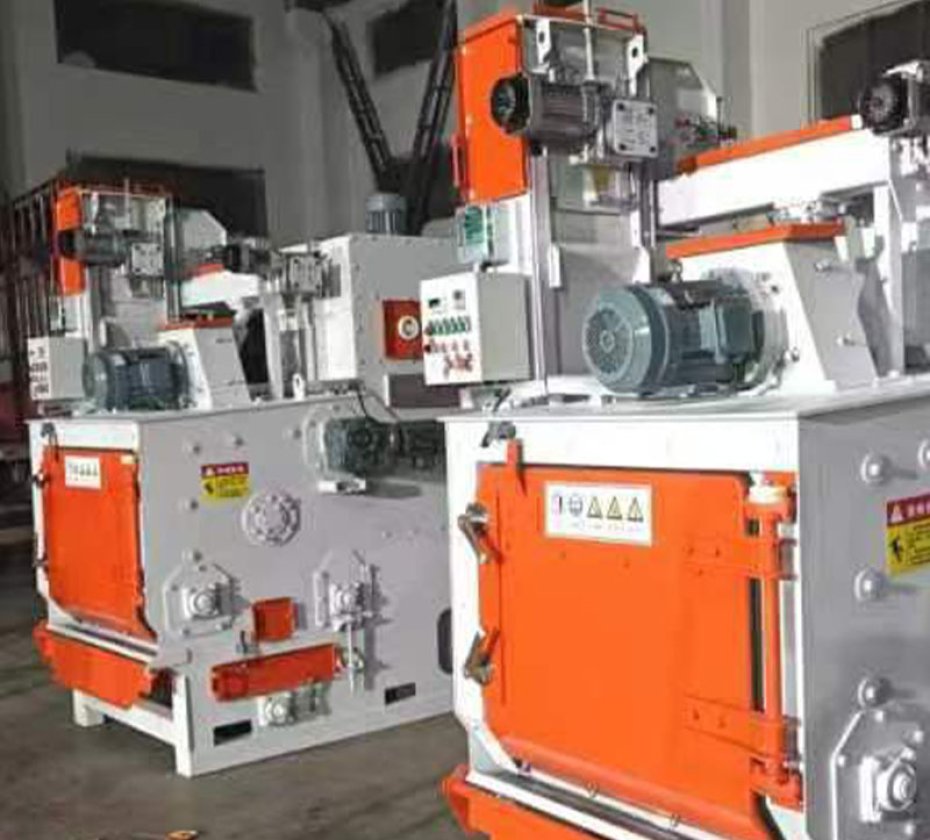

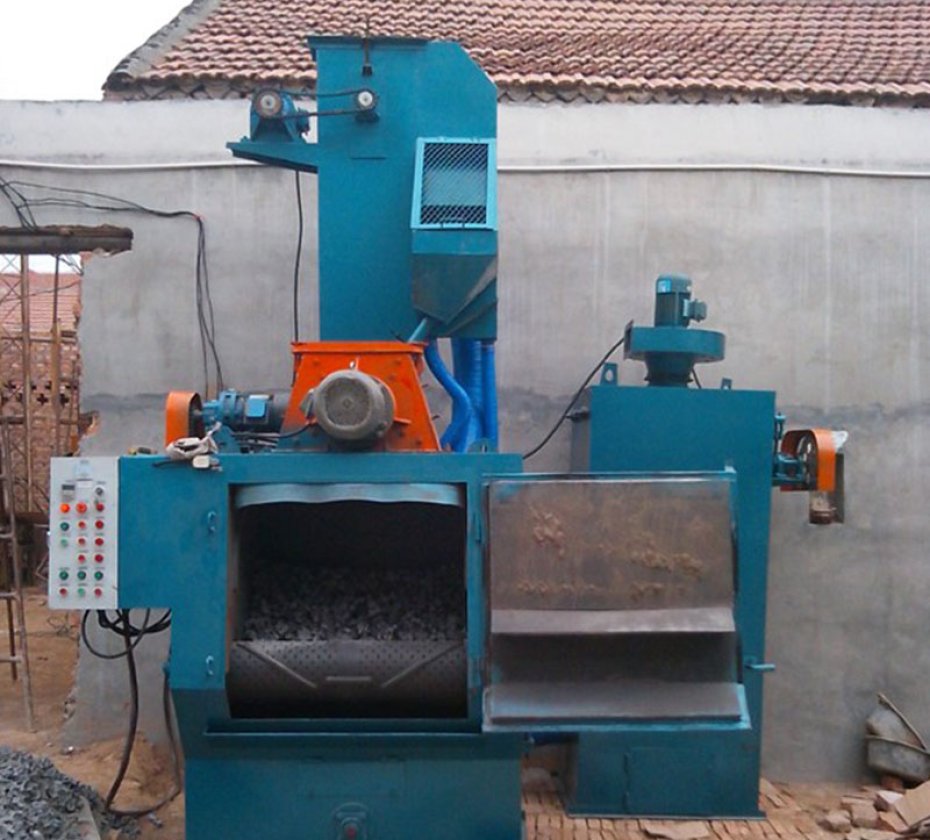

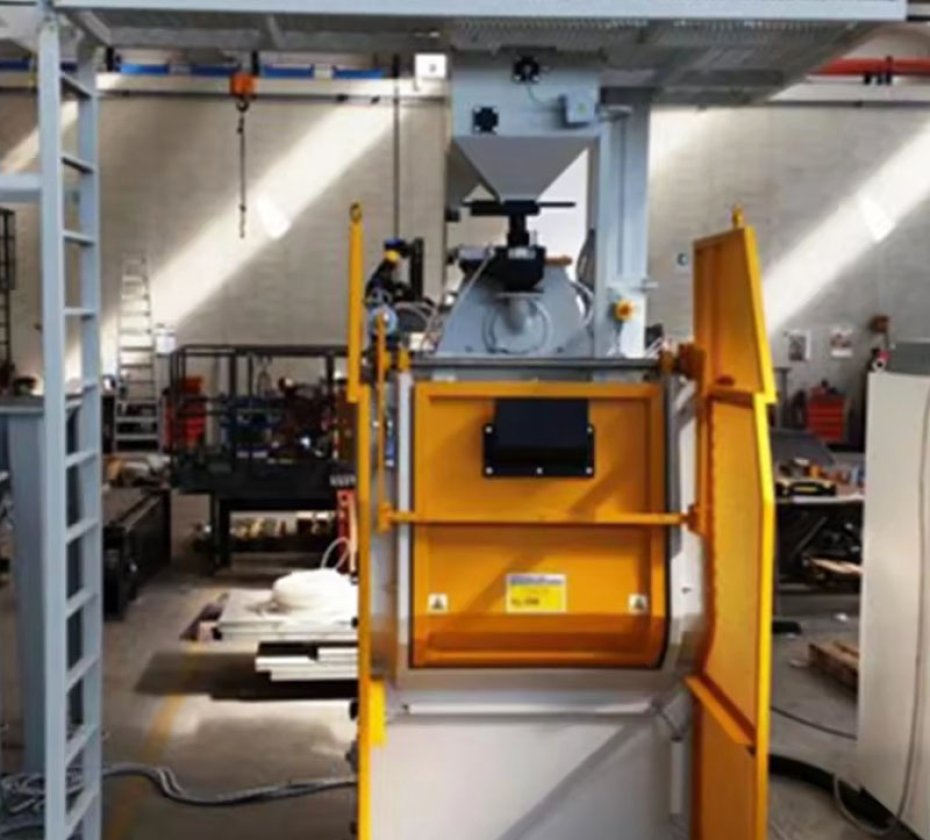

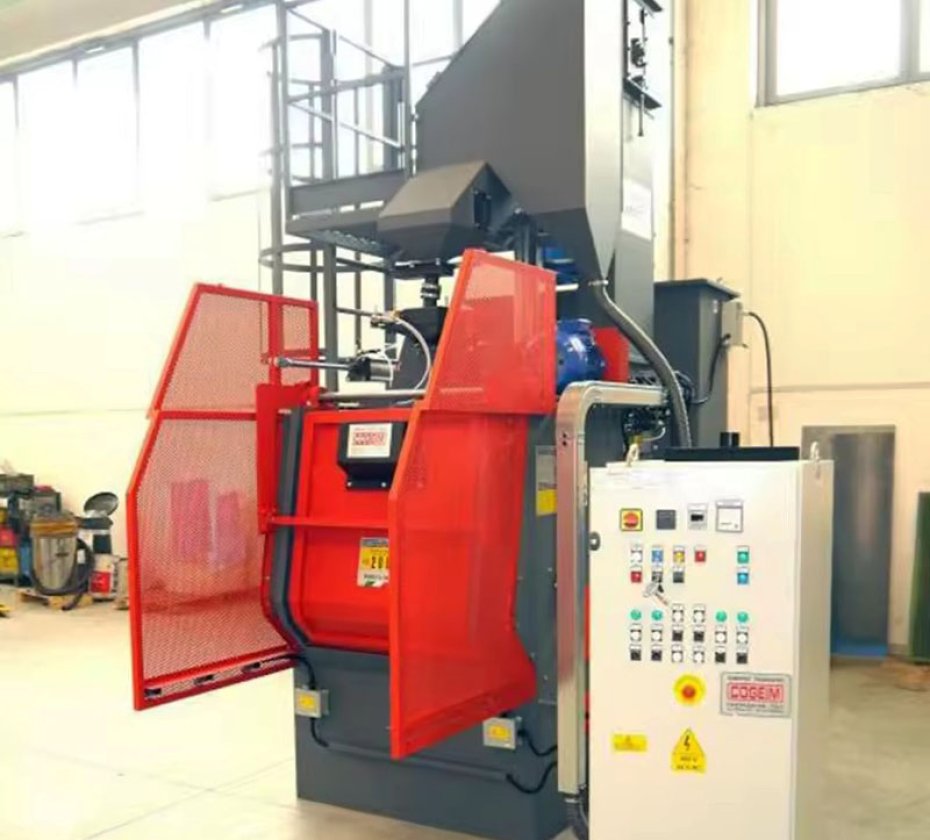

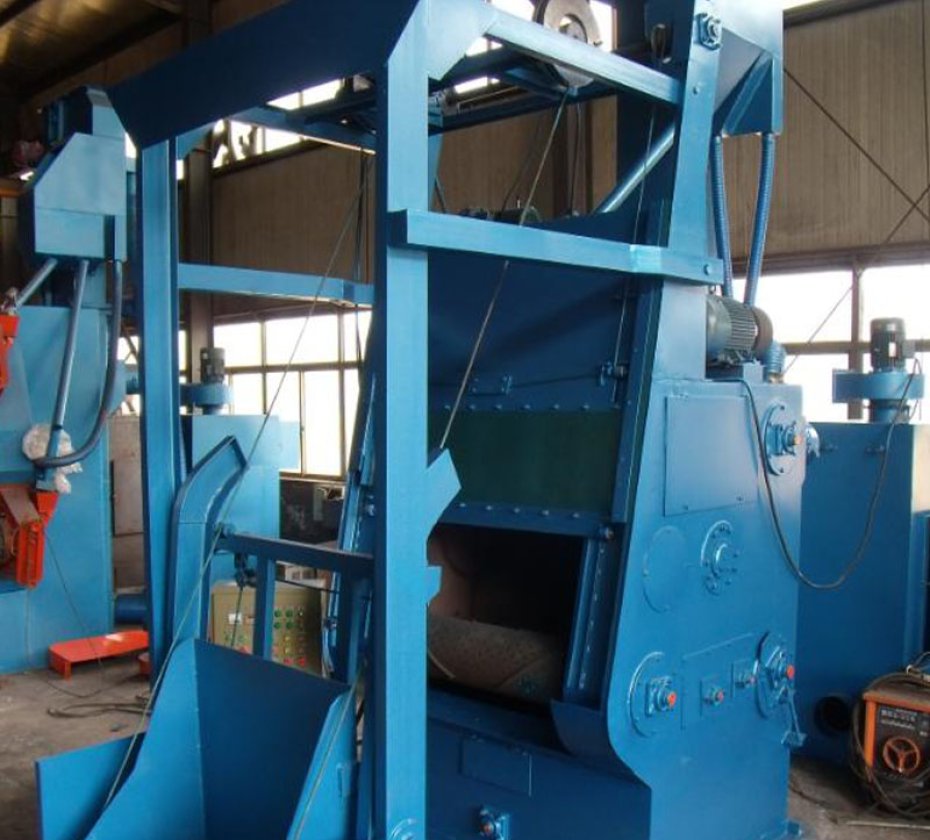

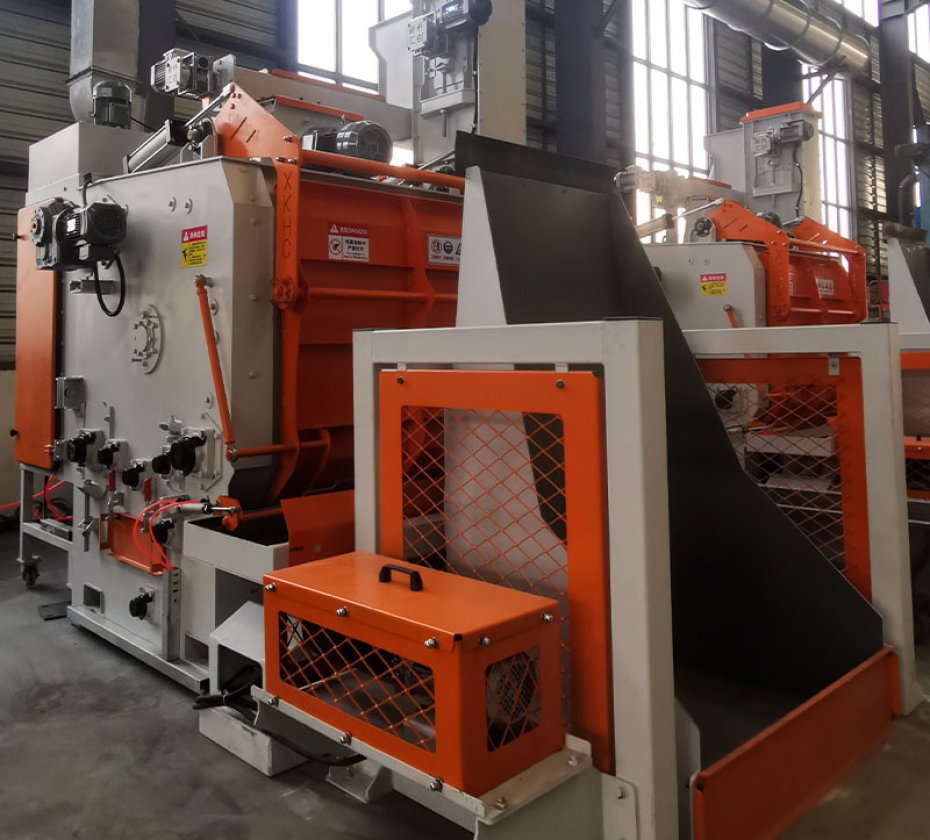

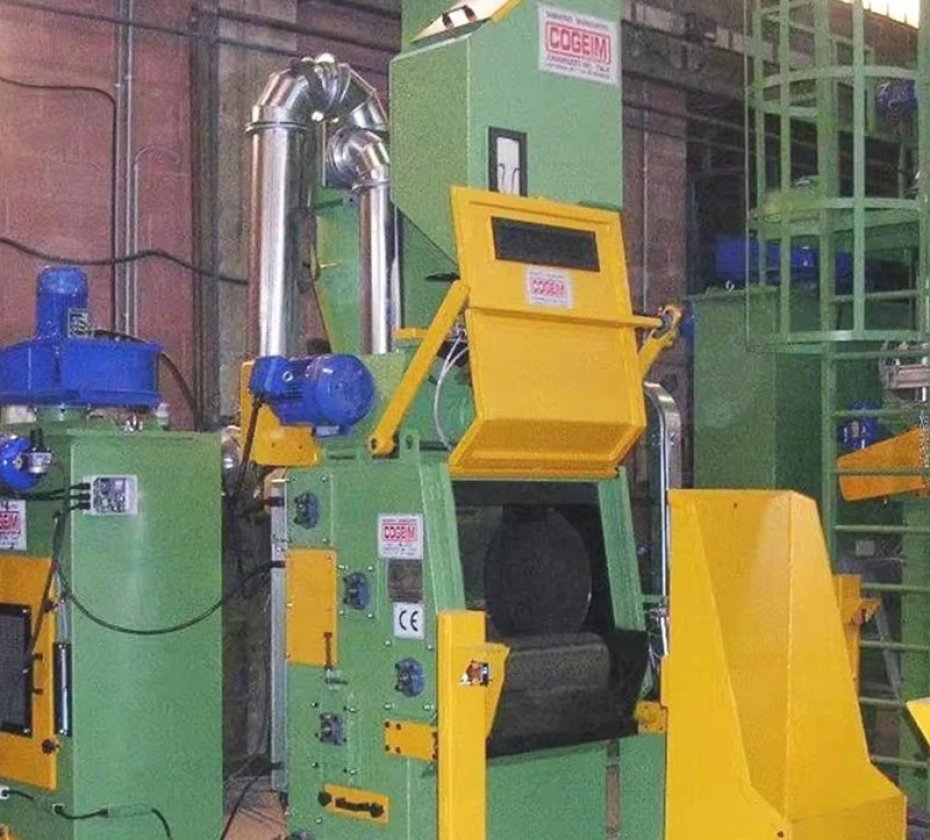

It is a tumble belt conveyor machine designed and built as fully integrated blast cleaning system. It provides a cost-effective solution for batch cleaning, deburring, descaling, decoring and peening a wide variety of products including: Ferrous and non-ferrous castings, heat treated forgings, small automotive parts, die castings,fasteners, and much more.
Description of Rubber Belt Shot Blast Machine
1. Apron Belt Shot Blasting Cleaning Machine is used for surface cleaning, rust removing, and surface intensification of each kind of middle and small scale casting, forging and so on.
2. The machine is equipped with rubber belt conveyor according to the requirements.
3. The single weight of the work piece should be less than 10kg and not friable.
4. It can be used separated or in lines.
Parameters of Crawler Belt surface cleaner :
Model | Q324 | Q326 | Q3210 |
Dimension of cleaning chamber | Φ400x650mm | Φ600x900mm | Φ1000x1100mm |
Capacity of shot blasting chamber | 50L | 100L | 300L |
Blasting capacity | 40kg/min | 100kg/min | 1600kg/min |
Number of blasting wheel | 1pcs | 1pcs | 1pcs |
Dust collect type | Bag filter or Filter-barrel filter | Bag filter or Filter-barrel filter | Bag filter or Filter-barrel filter |
Overall dimensions of the machine | 1400 x 1350 x2450mm | 1650x1850x 3400mm | 1650x1730x4400mm |
Max.weight of single | 5kg | 10kg | 30kg |
Advantages:
1) allows parts to be tumbled inside, ensuring even blast coverage of all surfaces. The belt is designed to offer excellent
abrasion resistance, at the same time delivering high load capacities.
2) adjust blast wheel and belt speed based on the type of materials to be treated, our shot blasting systems ensure high
performance.
3) With their combined forward/tumbling movement of the materials, the tumble belt shot blasting systems ensure considerable advantages in terms of finished appearance and shorter processing times.
4) It uses high speed cantilever centrifugal type turbine blast wheels, which highly improve cleaning effect and efficiency. All blast wheels are dynamic balance checked, which makes it has less vibration and noise.
5) Material of blades, abrasive distributor, and control cage is high chrome, which can be used over 500 hours. Another option isTaiwan made special material blades, which has 1000-1600 hours lifetime.
6) The tumble belt has rubber material and manganese steel.
7) Pulse jet bag type dust collector, dust remove efficiency is over 99%. Good for environmental protection. A cartridge type dust collector can control the dust concentration under 50 mg/m3.

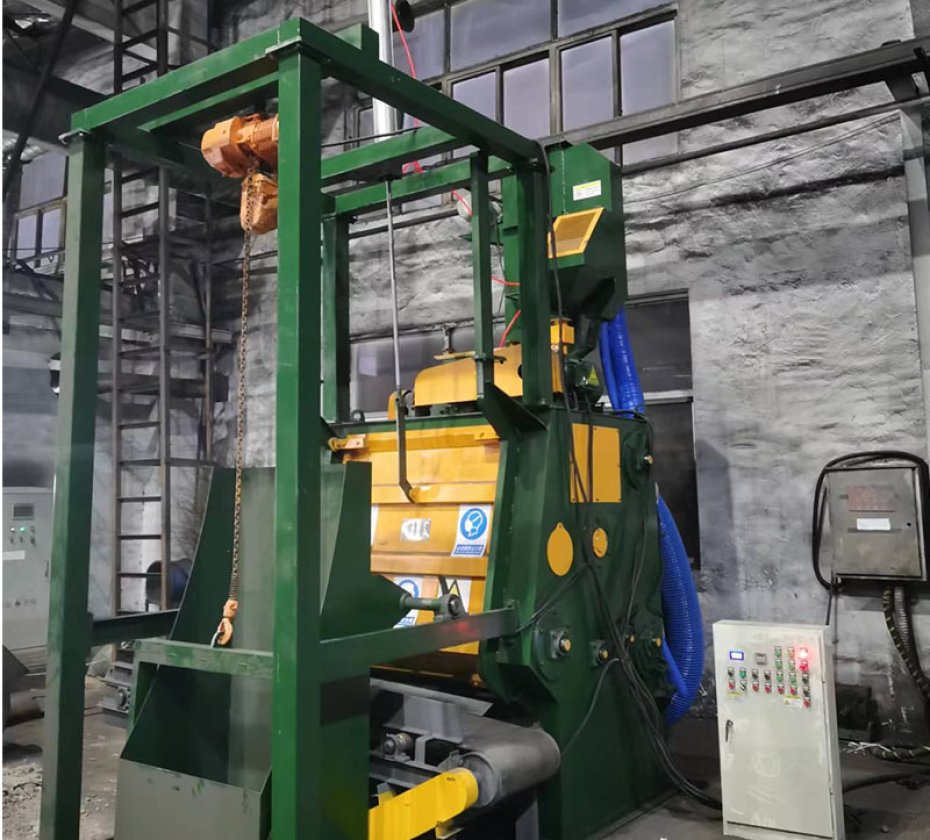

8) Automatic loader for massive continuous production connected to a production line. (Optional)
9) Air cylinder driven door, easy operation and good sealing.
